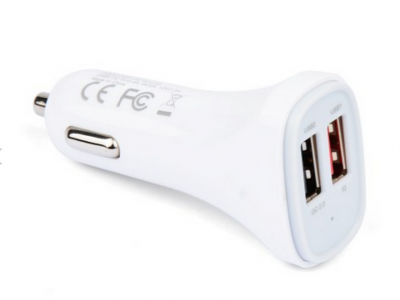

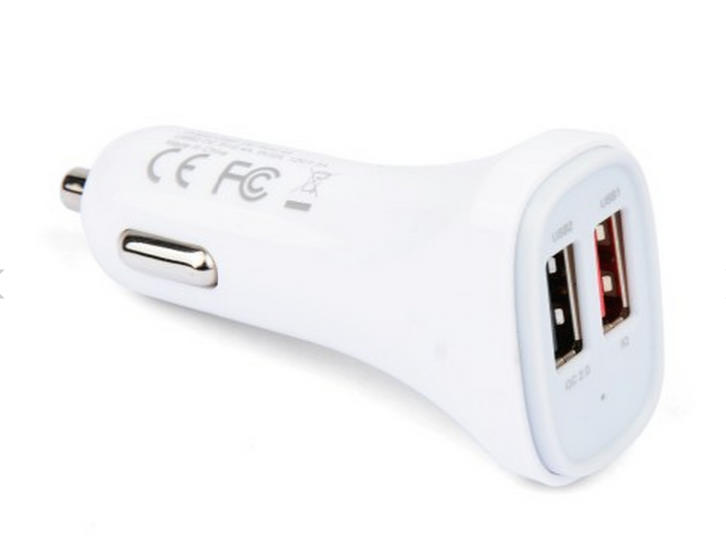

QC2.0 Car Charger&5V/2.4A
- Part No. :XZCCGR002
1.0 INTRODUCTIONThis product is a high-performance car charger with 5V/2.4A smart charging & QC2.0 quick charging output. With this charger, it is feasible for you to charge any devices (eg:
This product is a high-performance car charger with 5V/2.4A smart charging & QC2.0 quick charging output. With this charger,
it is feasible for you to charge any devices (eg: digital cameras, PDAs, mobile phones, USB accessories) with your car when
it is in necessity. This car charger becomes a powered USB port by plugging into your car's cigarette lighter jack. It is
helpful and convenient for you in long time journey and for business!
l Built-in IC of high quality allows the 12 -24VDC of input voltage
l Double USB ports with different outputs：
USB1: 5V/2.4A for smart phones, with intelligent IC to detect their output requirements.
USB2: Intelligent integrated circuit equipped measures voltage and automatically adjusts power outputs of 5V/2.4A, 9V/2.0A, 12V/1.5A for charging fast and safety.
l Accurate limited current output and overload protection.
l Over temperature and short circuit protection.
l Auto protection can effectively protect the internal electric circuit of the car from burning or damaging.
l Compliant with CE, FCC standards.
l This product shell is made of fireproof material, and accident won’t happen even in complex situations.
l LED indicator turns blue when inserted into the cigarette lighter jack.
l Light, smart and convenient to use.
12 to 24V DC
USB1:5V DC 2.4A
2 USB A/F
Ripple And Noise
Output over-current protection
Short Circuit Protection
Over temperature protection
Please refer to silk print file
Operating Temperature Range
Storage Temperature Range
-20 ~ 60°C
Operating Relative Humidity
30 ~ 90% RH.
Storage Relative Humidity
