3G-SDI HDMI Wireless transmission suite

3G-SDI/HDMI Wireless transmission suite that use the highest level of wireless communication technology to enable transmit lossless, uncompressed, no-delay 3G-SDI or full HD HDMI signal.

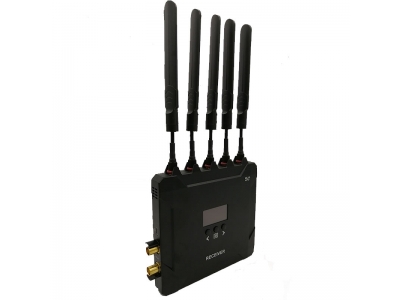

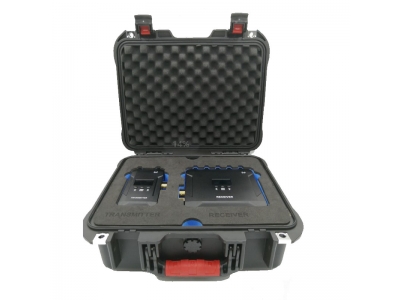

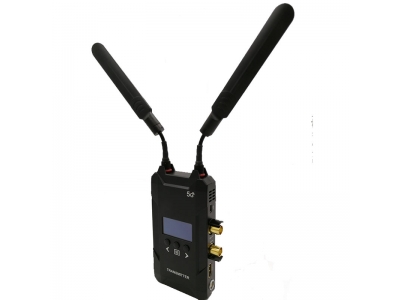

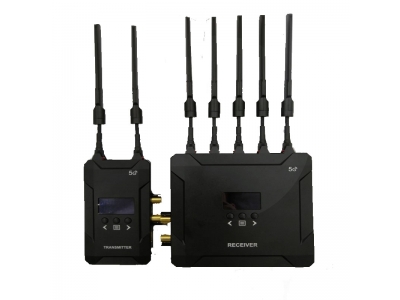

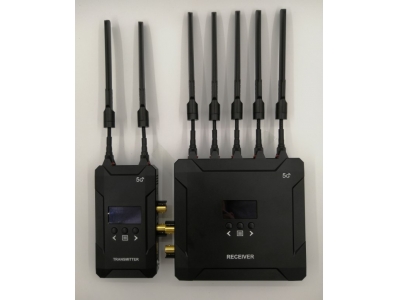

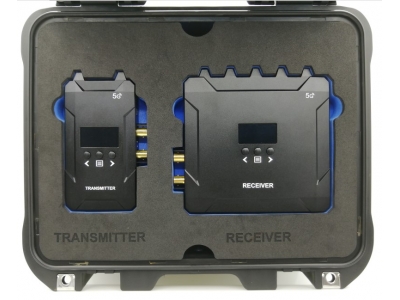

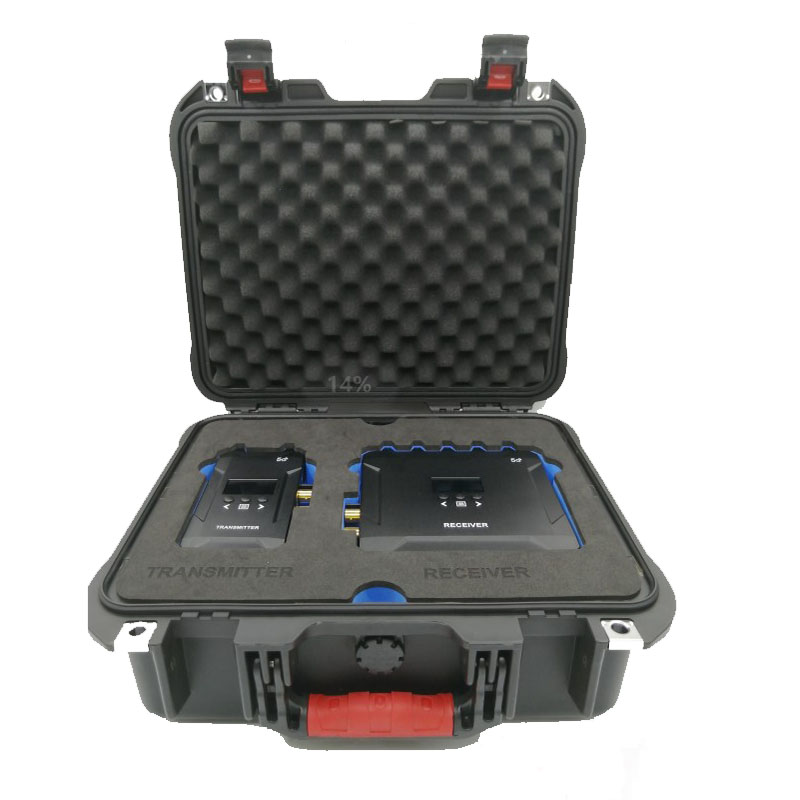

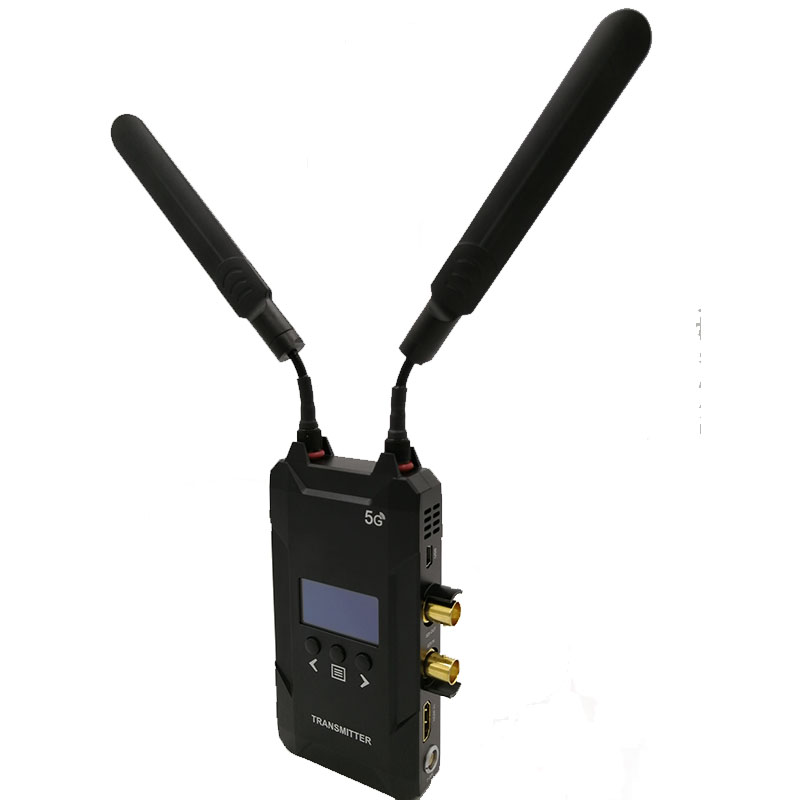

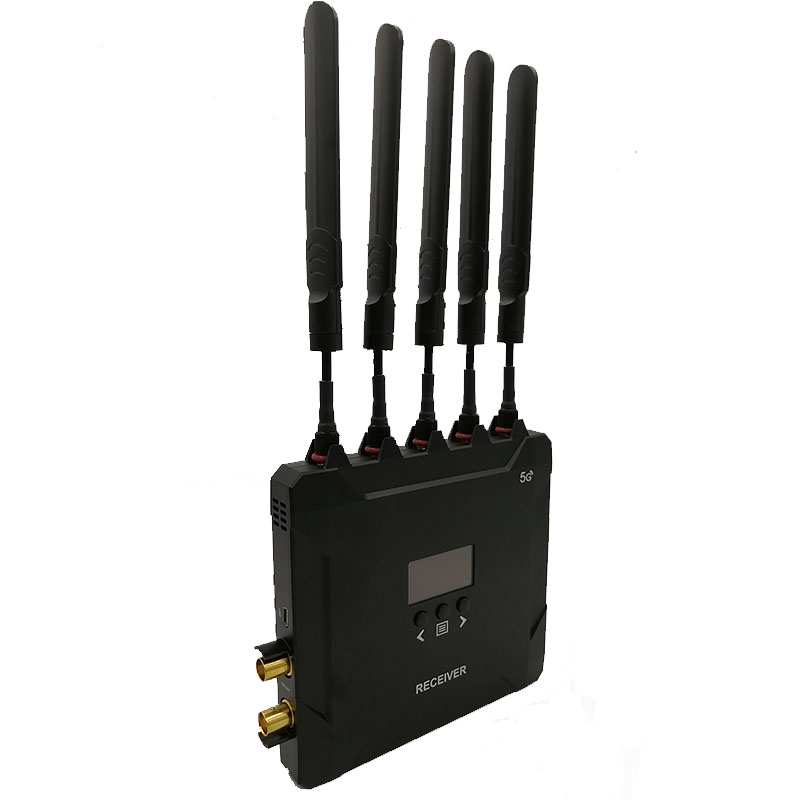

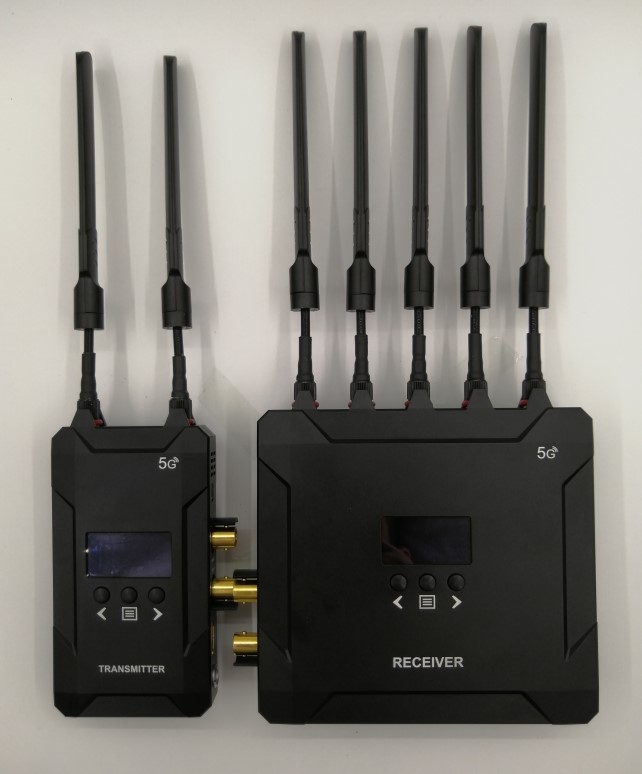

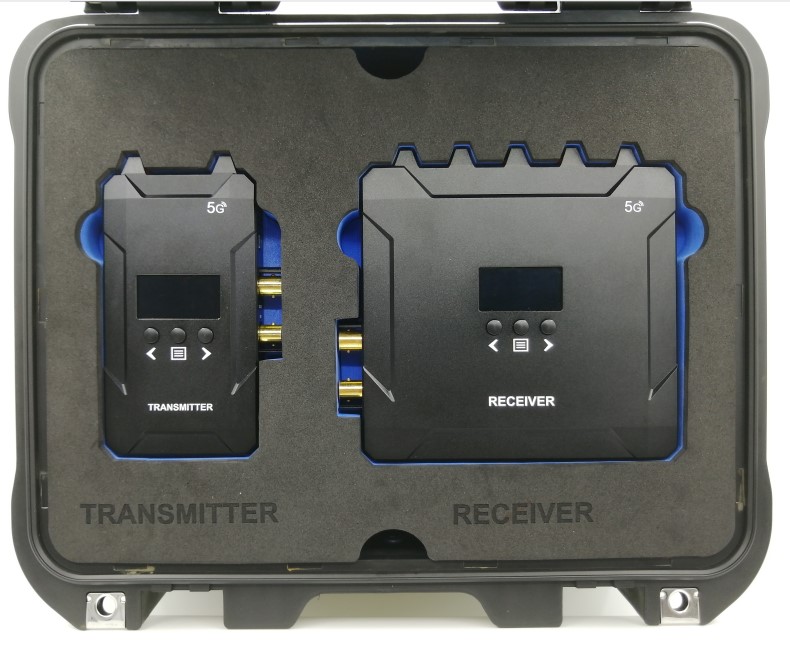

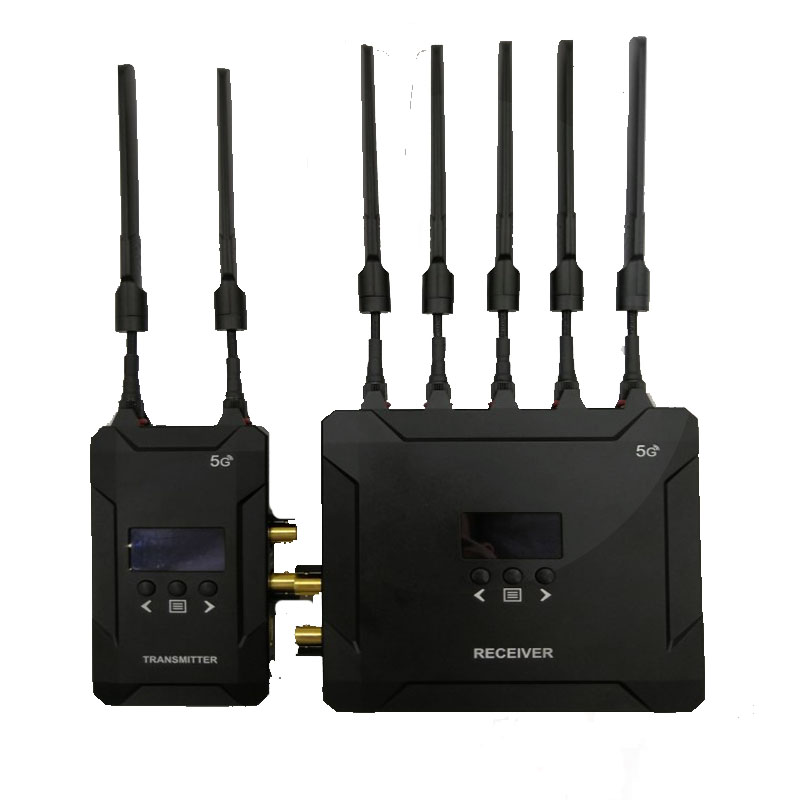

This products include a transmitter and a receiver, and is equipped with 3G/HD SDI interface and full HD HDMI interface. The transmitter has two antennas and the Receiver has five antennas. The antennas’ operate frequency is 5.1GHz~5.9GHz, and these frequency is changeable through the software configuration to adopt the wireless regulatory requirements in the world. And the same time, these machines have been fitted with OLED screen for display the wireless signal, channel numbers, Resolutions, Frame Rate and 3 buttons for switching the channel by manual. There have 10 channels (from zero to nine).

Max Four sets 3G-SDI/HDMI Wireless transmission suite been used at the

same time and same space are supported. The transfer mode is multi-

point to multi-point with different audio and video.

 FEATURES

l Max resolutions 1080P@60Hz, zero delay and no compression

l Maximum transmission range is 1300ft(400 meters)

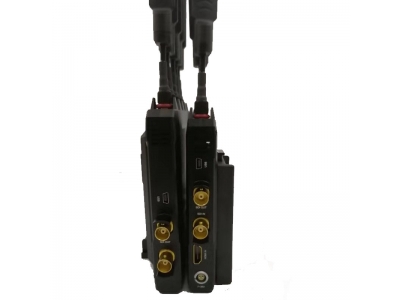

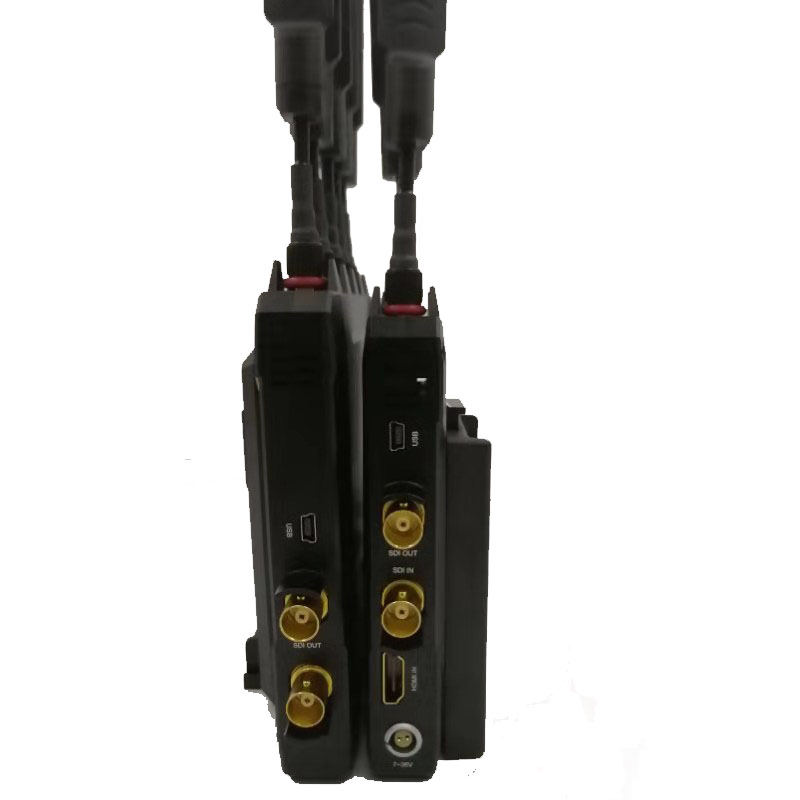

l Support HDMI and 3G-SDI inputs and outputs

l Support point to point, and point-to-multiple network topology

l Support SMPTE 425M , SMPTE 424M, SMPTE 292M Standard

l Support 5GHz ISM frequency band, maximum 10 frequency channels selected by buttons with OLED display

l Support display DC power status, video status and receiver RSSI by OLED

l Support Wide range power supply, range from 7V to 36V

l Support ±8 KV ESD protection level (HBM, Contact discharge)

l 5GHz ISM bandwidth, supports 10 communication channels, and can coexist with WIFI network when working

l Support Optional Sony F970,V-mount and G-mount, battery buckle, convenient for field battery install and replacement
