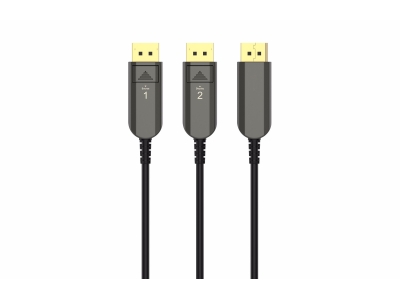

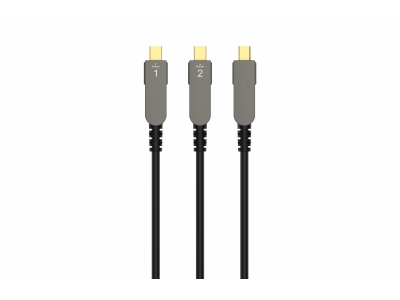

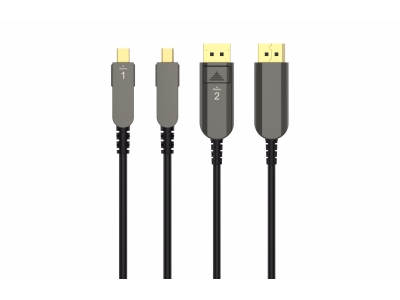

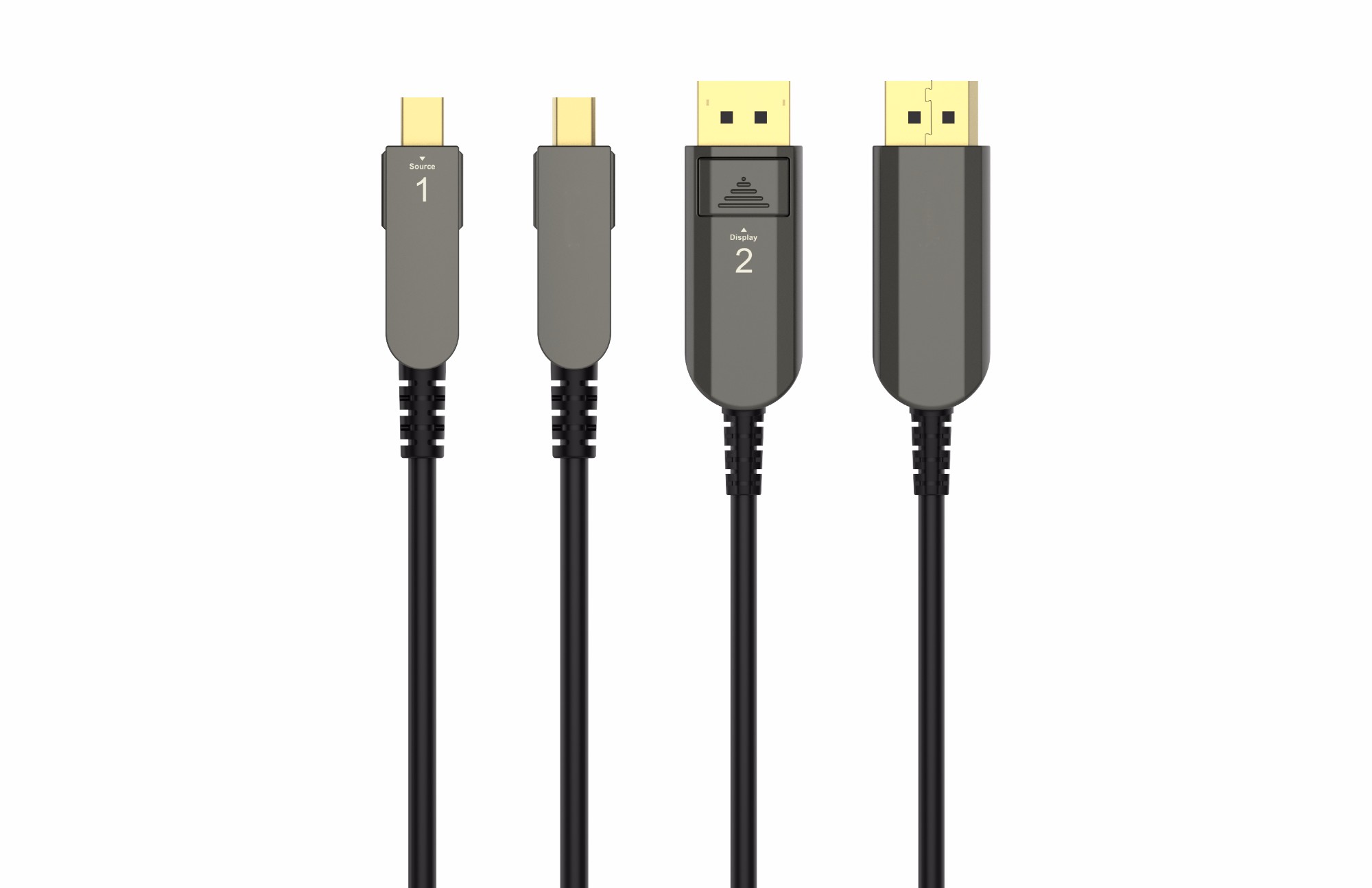

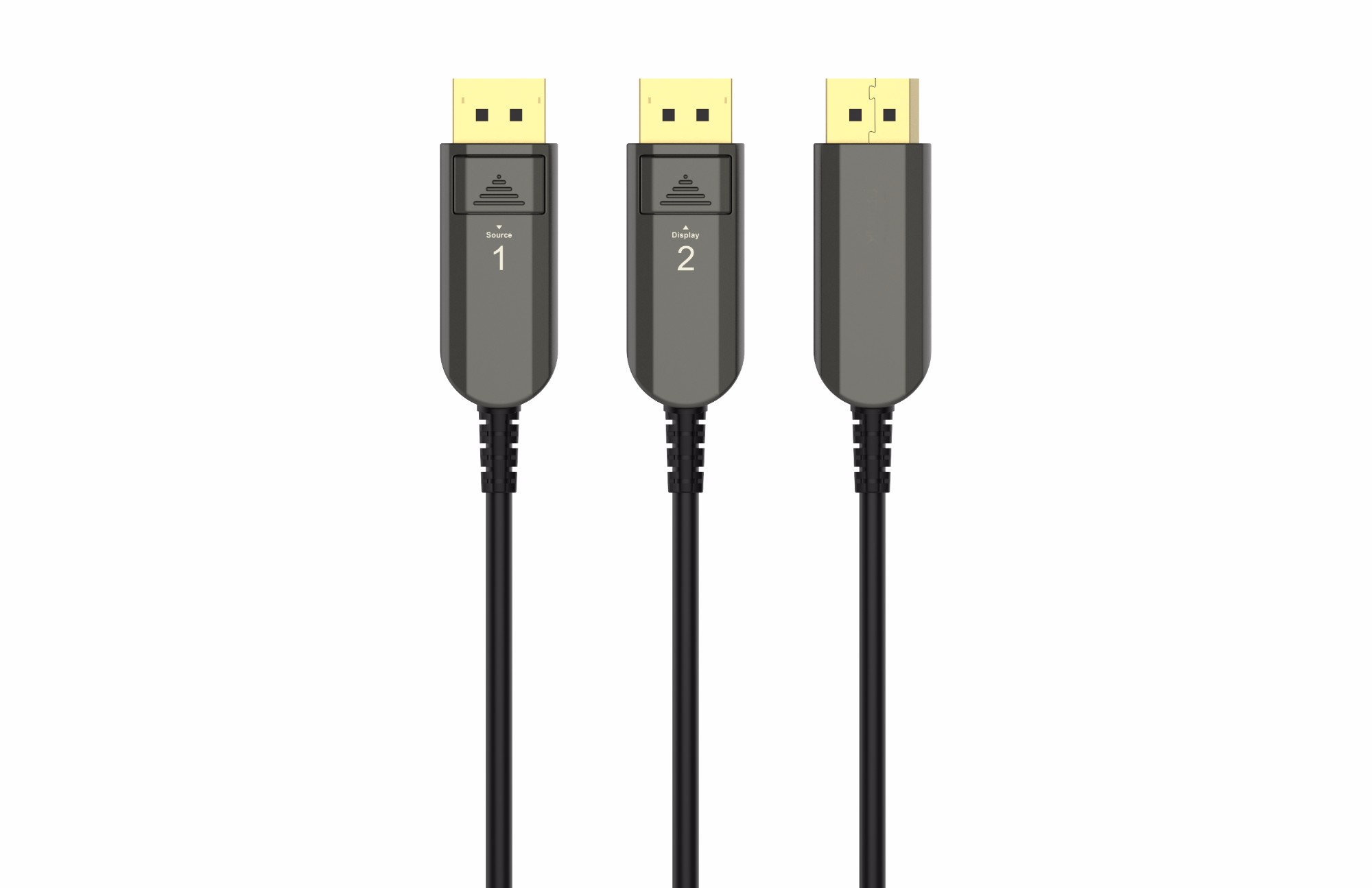

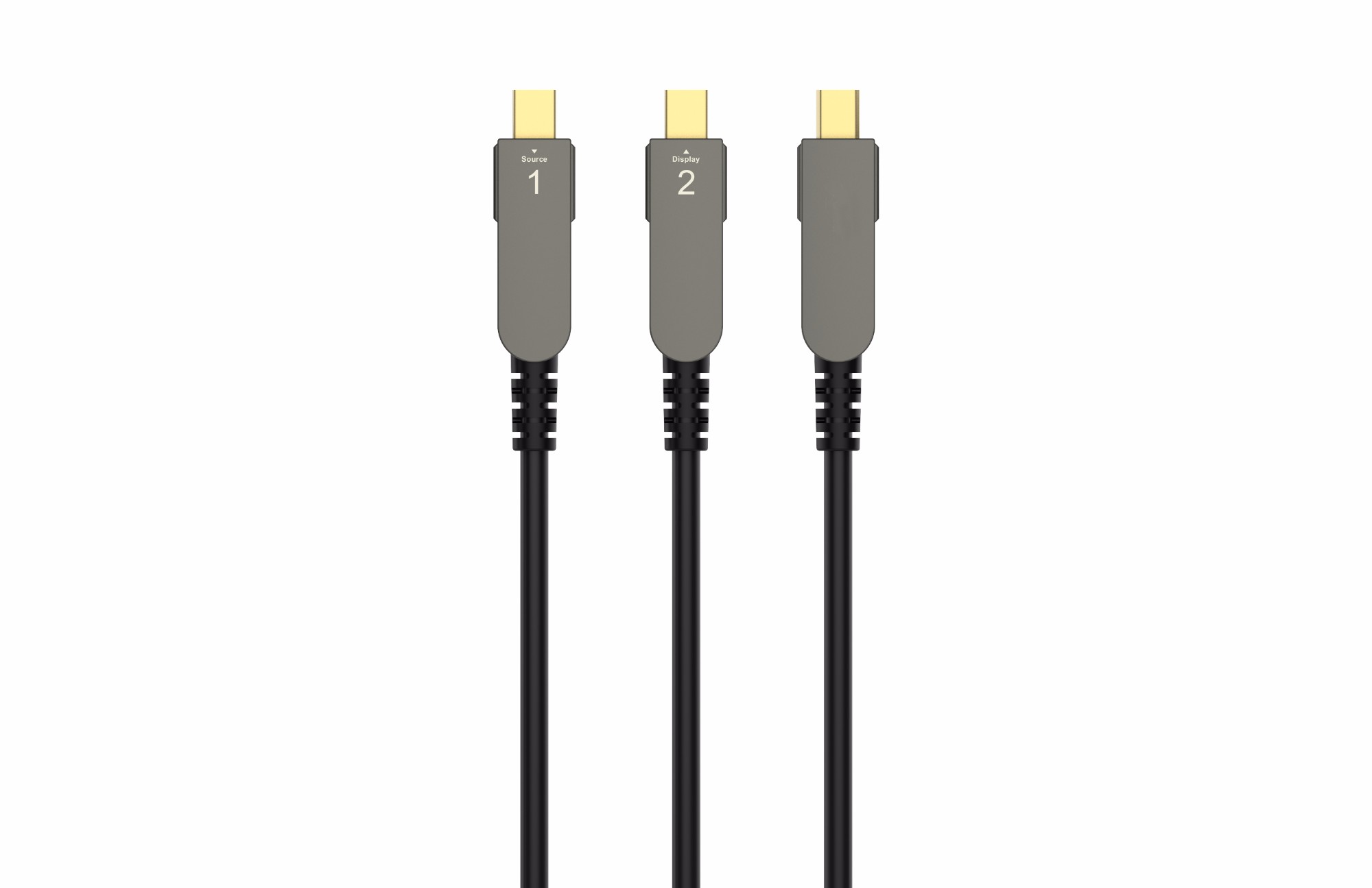

Our DP1.4 Active Hybrid Cable is the most competitive long reach DP
interconnection solution for high definition on the market.
It supports latest DP1.4 Maximum Data Rate 32.4 Gbps with light weight,
flexible and ultra-small long-term bending radius (52mm) hybrid cable.
With our advanced optical engine embedded, this DP Hybrid Cable
provides full DP1.4 and 4K120HZ/8K60HZ signal integrity. It supports up to
100m maximum length, is plug and play, and no external power unit isrequired.
1) Up to 100m Maximum Length with 4K60P.
2) Minimized plugs for installation in conduit.
3) Low Power Consumption: 500mW (max).(Power extracted from DP source)
4) Compatible with VESA DP1.4 version standard.
5) Support HBR3 (High Bit Rate) Cable Assembly (up to 8.1Gbs Data Rate),HDCP2.2/CEC/EDID
6) Support CEC and all output format video of VGA,DVI,HDMI
7) No signal loss –delivering crystal clear digital Images/audio instantly.
8) Supports resolutions to 8K UHD (7680 x 4320 @60Hz) resolution and 4K120Hz.
9) Hybrid optical cable with fiber and copper wire.
10) CE/RoHS. standard for A single vertical
