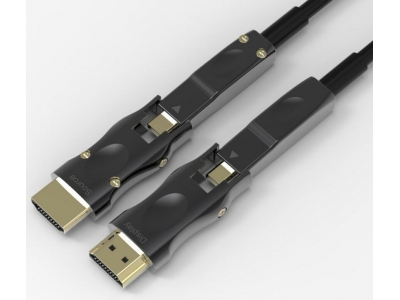

    Assembly HDMI 2.0 AOC Cable

    • Part No. :XZCHDMI046

    Assembly HDMI 2.0 AOC Cable

    1. Detailed information

    Fast transfer 100meter support 4k 60hz 1080p fiber AOC active HDMI 2.0 AOC  Cable

    DESCRIPTIONS

    Our new HDMI active Fiber Optic UHD Pluggable HDMI Cable which is suited for critical and versatile installations.It supports HDMI Maximum Data Rate 18Gbps with light weight, flexible and ultra-small long-term bending radius (20mm) hybrid cable. With our advanced optical engine embedded. This HDMI Hybrid Cable provides full HDMI signal integrity, support up to 100m maximum length, plug and play. No external power required.



    KEY FEATURES

    1.Supports a wide range of resolutions up to 4K@60Hz (color space 4:4:4) 3D and Deep color

    2.Supports Multi-channel audio, Dolby True HD, DTS-HD Master Audio

    3.Is HDMI compliant: EDID, CEC, HDCP (2.2), HDR (High Dynamic Range)

    4. Reduced EMI and RFI

    5. Has high pulling strength  and compression load

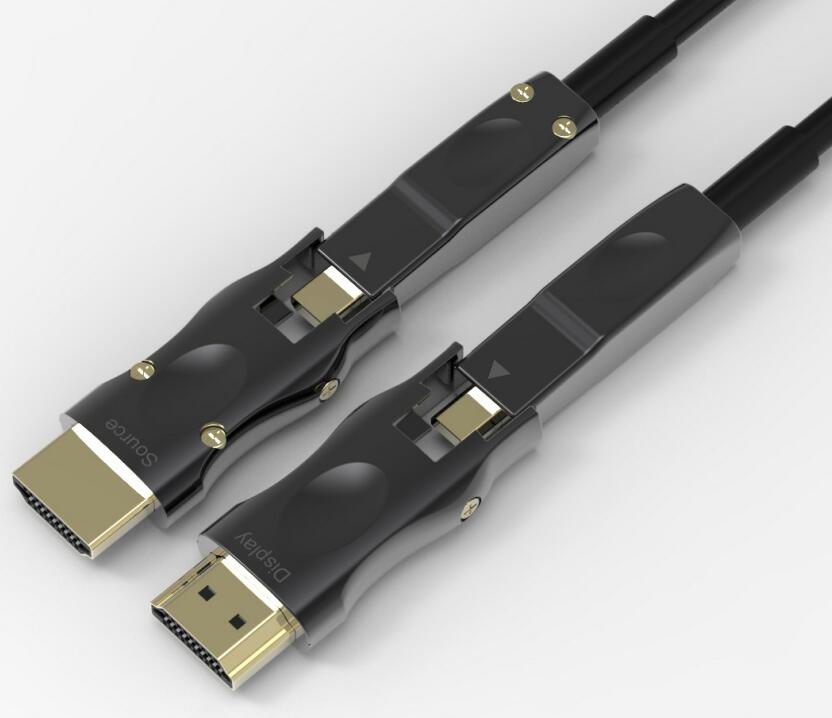

    6.Has Source / Display clearly printed on the connector as well as tagged on the cable for easy identification.

    7. Support 18G super speed

    8. Includes a DC cable to optionally connect an external 5V power supply(if required, this is typically connected on the display side .)

     Applications

    SHDC-8800 is ideal for long distance transmission in professional AV systems, indoor and outdoor digital signage and kiosks, home theater systems, surgical theaters ,facility automation systems and whenever high resolution video and audio are required .On the display side, the micro HDMI connector enables smooth pulling of the cable. The SOURCE end connects to the source (for example, a DVD, Blu-ray or game console box) and the DISPLAY end to the acceptor (for example, a projector, an LCD display or a tablet device .

     Absolute Maximum Rating

    Parameter

    Symbol

    Min

    Max

    Unit

    Power Supply Voltage

    VCC

    4.5

    5.5

    V

    Operating Temperature

    Top

    0

    50

    °C

    Storage Temperature

    Ts

    -40

    70

    °C

    Relative Humidity

    Hs

    10

    80

    %RH

     Recommended Operating Conditions

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Power Supply Voltage

    VCC

    4.75

    5.0

    5.25

    V

    Operating Temperature

    Top

    0


    50

    °C

    Specifications

    Item

    Description

    Units

    Transmitter (Source)

    Receiver (Display)

    HDCP & DDC

    HDCP2.2 Fully Support bi-directional EDID and HDCP communication

    Video Bandwidth

    6 Gbps /x3Channel (max)+ Clock.

    Supported

    Resolution & Distance

    HDTV : 480p, 720p, 1080i and 1080p deep color, 4K@30Hz, 4K@60Hz(4:4:4), 3D Full HD 1920 x 1080 , up to 100 meters

    O/E Converter

    4 channel 850 nm VCSEL array

    4 CH GaAs PD array

    Connector Type

    HDMI type D with HDMI D/Female to HDMI A/Male Adaptor

    Connector Demension

    Type D: 44.2mm x 12.7mm x 7.1mm W, D, H

    Type A : 48.2mm x 20mm x 10mm  W, D, H

    Pulling Tool: 55.2mm x 17.5mm x 13mm W, D, H

    Cable Type

    Hybrid type with OM3 fiber and copper wire

    Cable Length

    15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available.

    Cable Outer Diameter

    4.5mm

    Jacket Outer Material

    PVC/TPU(Custom)

    Cable Weight  TBD

    Cable Weight  TBD

    Cable Color  TBD

    Cable Color  TBD

    Differential Input

    100 ohm (typ)

    Power Consumption

    250mW (max)
