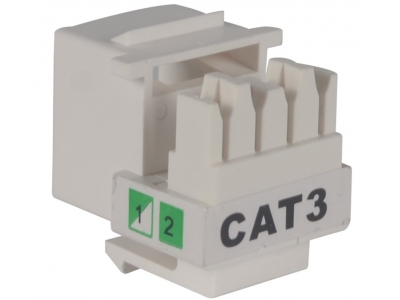

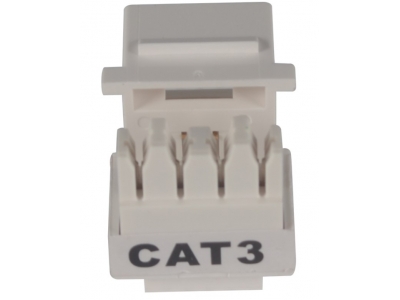

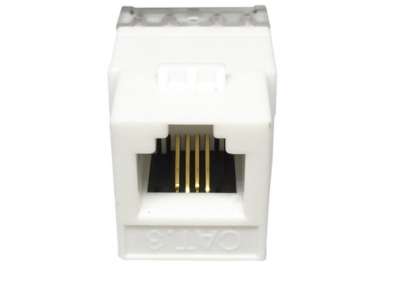

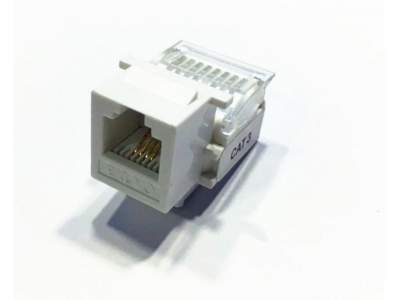

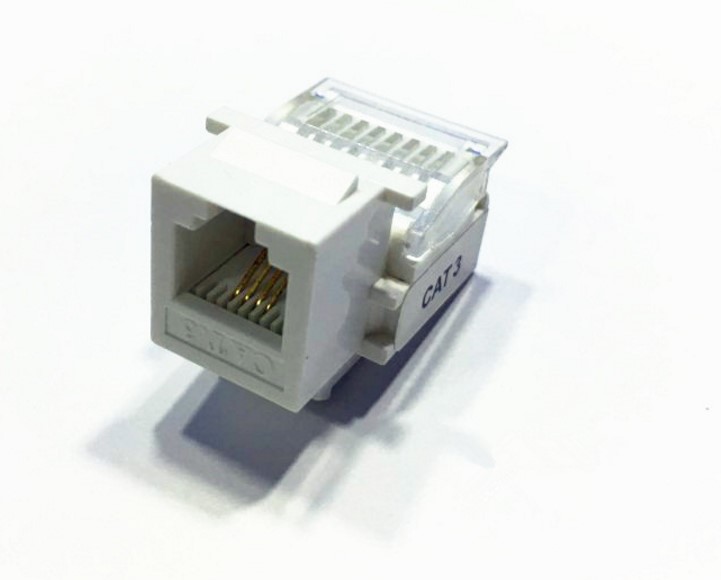

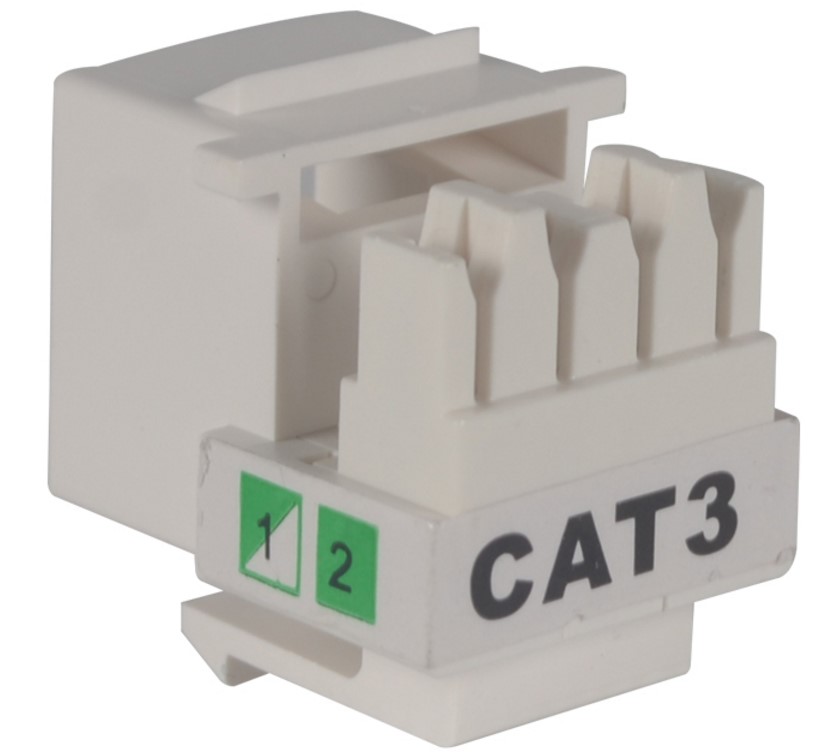

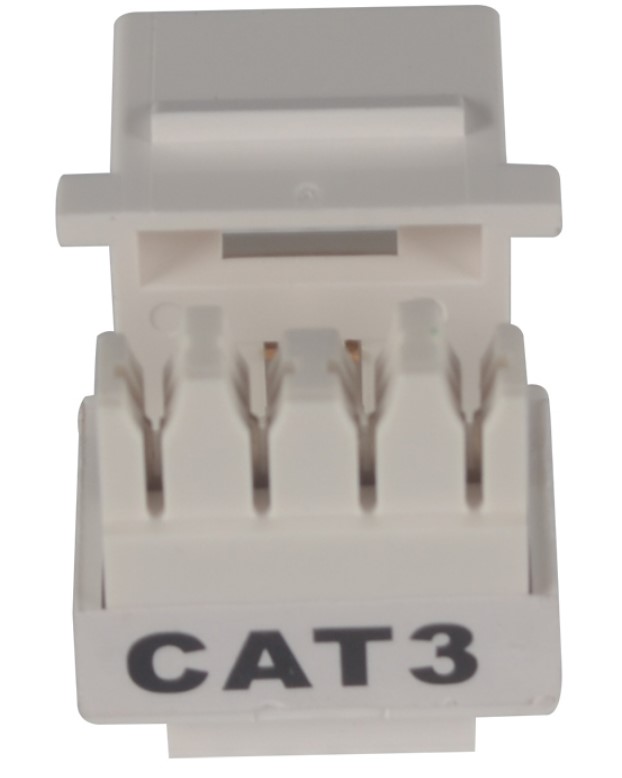

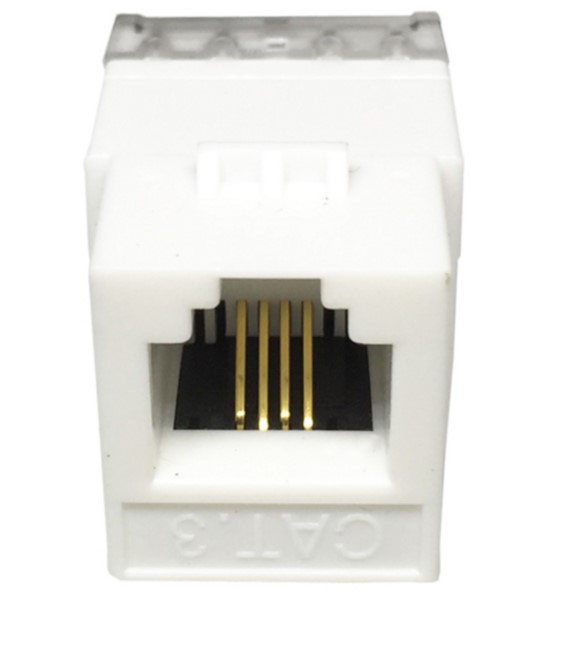

Cat5e Tool-less RJ11 Keystone Jack RJ11 toolless keystone jack 6p4c

  • Part No. :XZCKSTRJ11001A

Cat5e Tool-less RJ11 Keystone Jack RJ11 toolless keystone jack 6p4c

  1. Detailed information

High Quality  Cat5e Tool-less RJ11 Keystone Jack RJ11 toolless keystone jack 6p4c

Features:

cat3 keystone jack rj11 modular jack 6p6c 6p4c

Electrical:

  • Voltage rating: 125V AC rms

  • Current rating: 1.5Amp

  • Contact resistance: 100m Ohms (maximum)

  • Insulation resistance: 1,000M Ohms (minimum) at 500V DC

  • Dielectric strength: 750V AC rms, 60Hz and one minute

  • Environment:

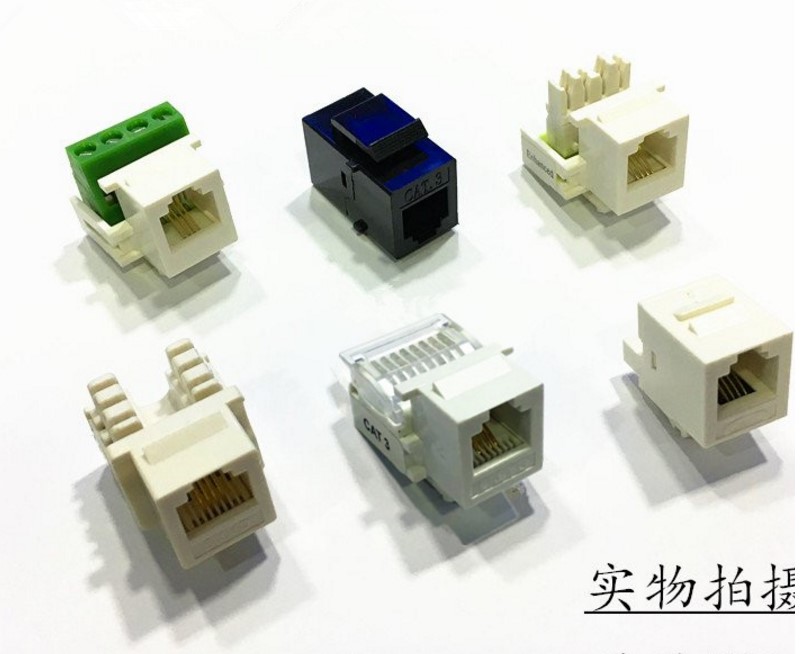

    Cat3 Cat5e Cat6  keystone jack white

    Storage temperature: -40 to +85°C

    Operating temperature: 0 to 70°C

    Conform to TIA/EIA 568B category 5e

  • Mates with modular plug conforming to FCC part 68 and subpart F

  • Mechanical:

  • Housing material: PC UL94V-0

  • Inner material: flame-retardant ABS UL94V-0

  • PCB material: FR-4

  • Thickness: 1.6mm

  • Contact material: phosphor bronze stamp and PIN T=0.35mm

  • IDC contact material: phosphor bronze, T=0.50mm with nickel plating

  • Wire: 24 to 26AWG
