FT232RL,TTL-232R-RPI, USB UART TTL 3.3v cable

  • Part No. :XZCUSB2043

FT232RL,TTL-232R-RPI, USB UART TTL 3.3v cable

  1. Detailed information

FT232RL,TTL-232R-RPI, USB UART TTL 3.3v cable

 Product Description:

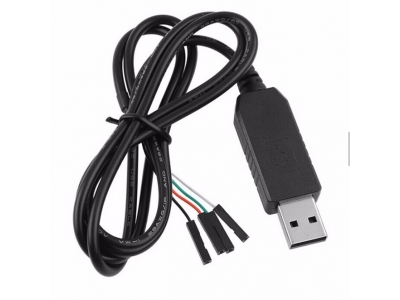

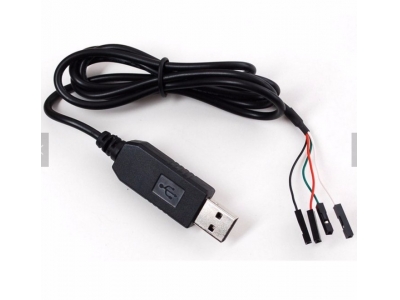

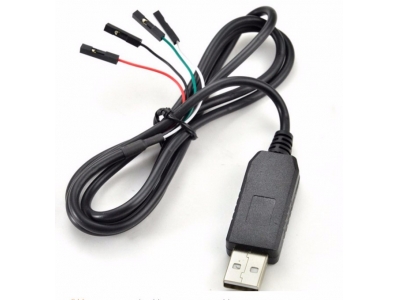

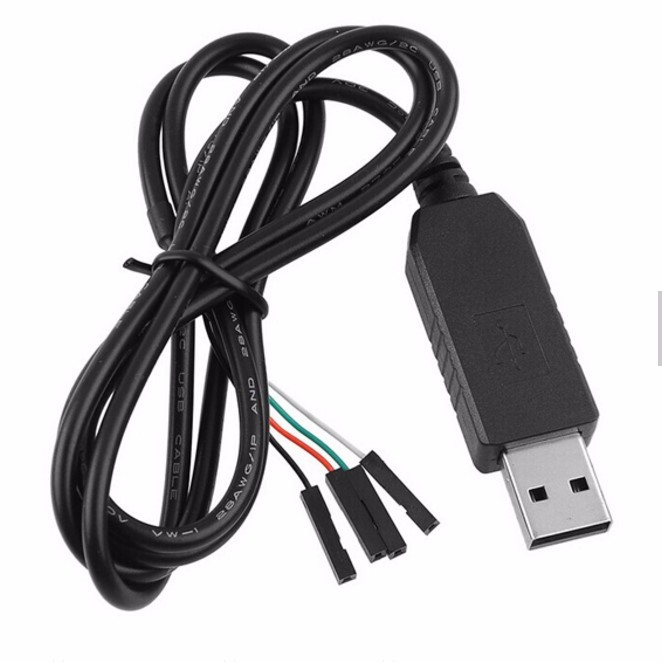

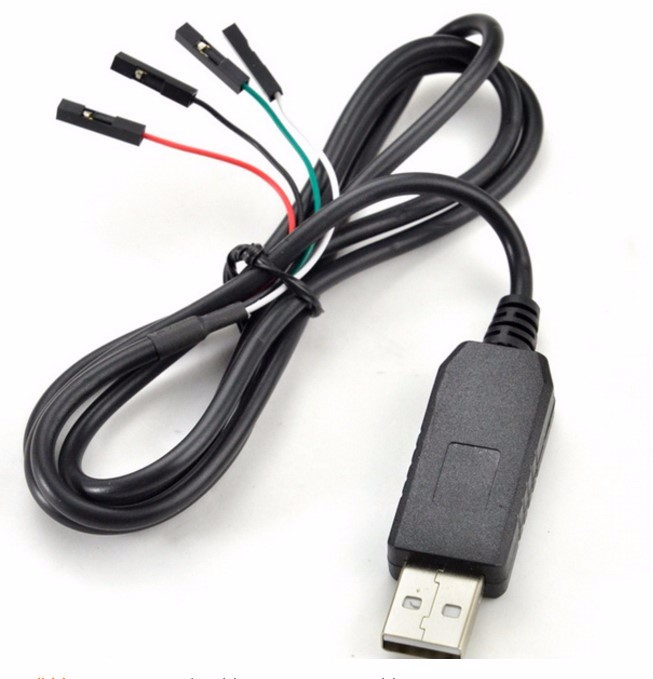

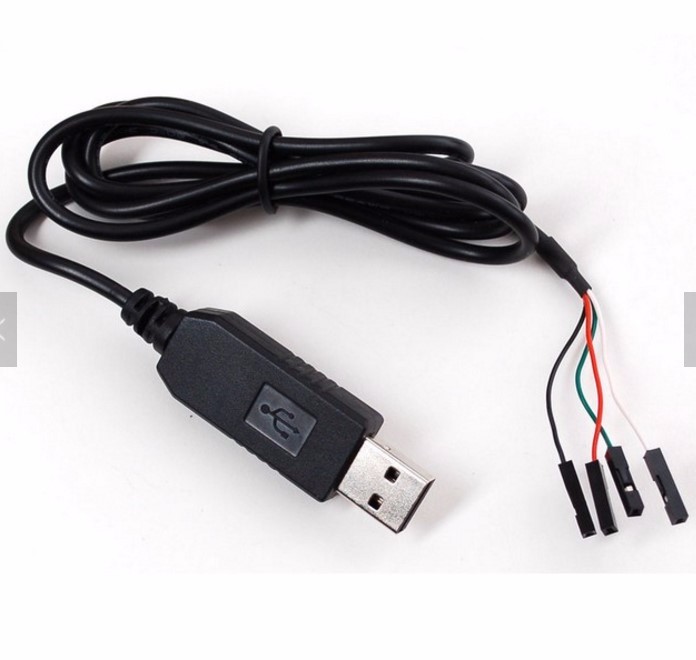

The cable is easiest way ever to connect to your microcontroller/Raspberry Pi/WiFi router serial console port. Inside the big USB plug is a USB<->Serial conversion chip and at the end of the 36" cable are four wire - red power, black ground, white RX into USB port, and green TX out of the USB port. The power pin provides the 500mA direct from the USB port and the RX/TX pins are 3.3V level for interfacing with the most common 3.3V logic level chipsets.

 Because of the separated pin plugs, this cable is ideal for powering and connecting up to the debug/login console on the Raspberry Pi. Connect the pins as shown to power the Pi and establish the RX/TX link. Then install the Windows XP/Vista/7/8 or MacOS X PL2303HX.D drivers on your computer and connect with a terminal program at 115200 baud.

 Also handy for hacking WiFi routers to install alternate OS's, or nearly any other TTL port. This is easier to use than an FTDI cable in many cases because the wires are separated

 This cable is not good for Arduino re-programming such as a Boarduino, MENTA, Monochron, etc. because it does not have the DTR/RTS wire necessary for initiating the bootloader reboot sequence. For that we suggest an FTDI cable or FTDI friend.

1.Integrated FT232RL chip offers a single chip USB to asynchronous serial data transfering interface.

2.Full USB protocol handled by the electronics in the cable USB

3.Conncting directly to the micrcontroller UART or I/O pins.

4.UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity

5.Fully assisted or X-On/X-Off software handshaking

6.Data transfer rates from 300 baud to 3Mbaud at TTL levels.

7.TTL-232R-RPi Debug cable provides a USB to TTL Serial interface for Raspberry Pi computer

8.Fully compatible with existing legacy COM port software

9.Self-powered, no extra power needed.

10.USB TTL cable with dubond 1/1 female socket

11.Data transfer rate from 300 Baud to 3M Baud at TTL level

12.1- GND,2-CTS,3-VCC,4-TX,5-RX,6-RTS .

13.5V output make the devices to be powered from the USB port

14.Internal EEPROM with user writeable area , support Mprog 3.5 programmable

15.USB 2.0 full speed compatible.

16.Customized pinout workable.

17.CE, ROSH compliance certificated

18.Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS

19.Support FTDI VCP driver and D2XX driver
