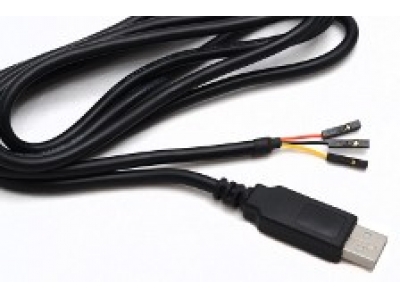

  1. TTL-232R-RPI,Raspberry PI, USB to TTL Serial Interface, USB 2.0 Full Speed Compatible

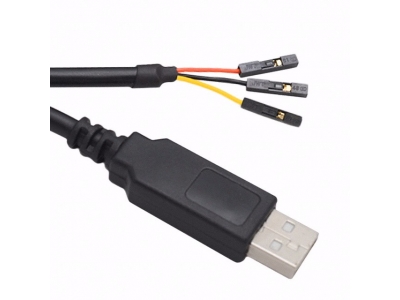

  2. TTL-232R-RPI,Raspberry PI, USB to TTL Serial Interface, USB 2.0 Full Speed Compatible

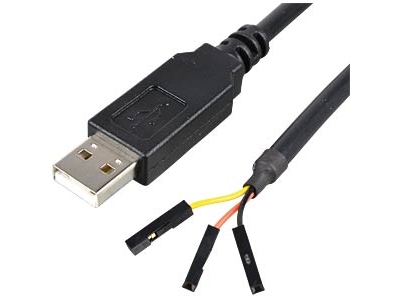

  3. TTL-232R-RPI,Raspberry PI, USB to TTL Serial Interface, USB 2.0 Full Speed Compatible

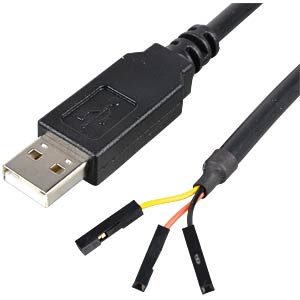

TTL-232R-RPI,Raspberry PI, USB to TTL Serial Interface, USB 2.0 Full Speed Compatible

  • Part No. :XZCUSB2042

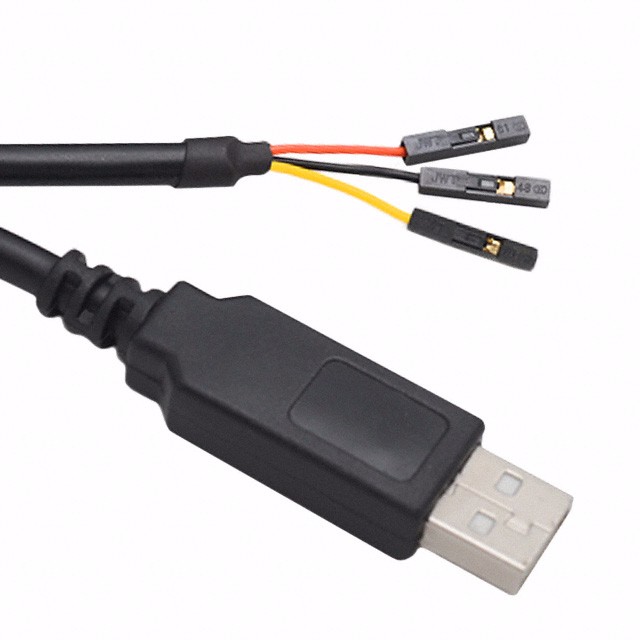

TTL-232R-RPI,Raspberry PI, USB to TTL Serial Interface, USB 2.0 Full Speed Compatible

  1. Detailed information

Features :

USB to UART Cable with 3.3V TTL Logic Level and Raspberry Pi Compatible Flying Leads

TTL-232R-RPi is a USB to TTL level serial UART converter cables incorporating FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The TTL-232R-RPi is designed for use with the Raspberry Pi (RPi), an ultra low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART which provides much more detail of what's happening within the RPi operating system. Connecting the debug cable to a PC and communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start up, which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from the PC.

·    On board FT232RQ provides single chip USB to asynchronous serial data transfer interface

·    Entire USB protocol handled by the electronics in the cable USB

·       Connect directly to a microcontroller UART or I/O pins

·    Fully assisted or X-On / X-Off software handshaking

·       Data transfer rates from 300baud to 3Mbaud at TTL levels

·       Internal EEPROM with user writeable area

·       Low USB bandwidth consumption

·       Support for FT232R FTDIChip-ID feature for improved security

·       3x flying leads outputs provide TXD, RXD and GND signals

·      UHCI / OHCI / EHCI host controller compatible
