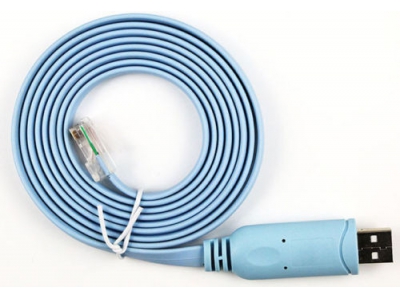

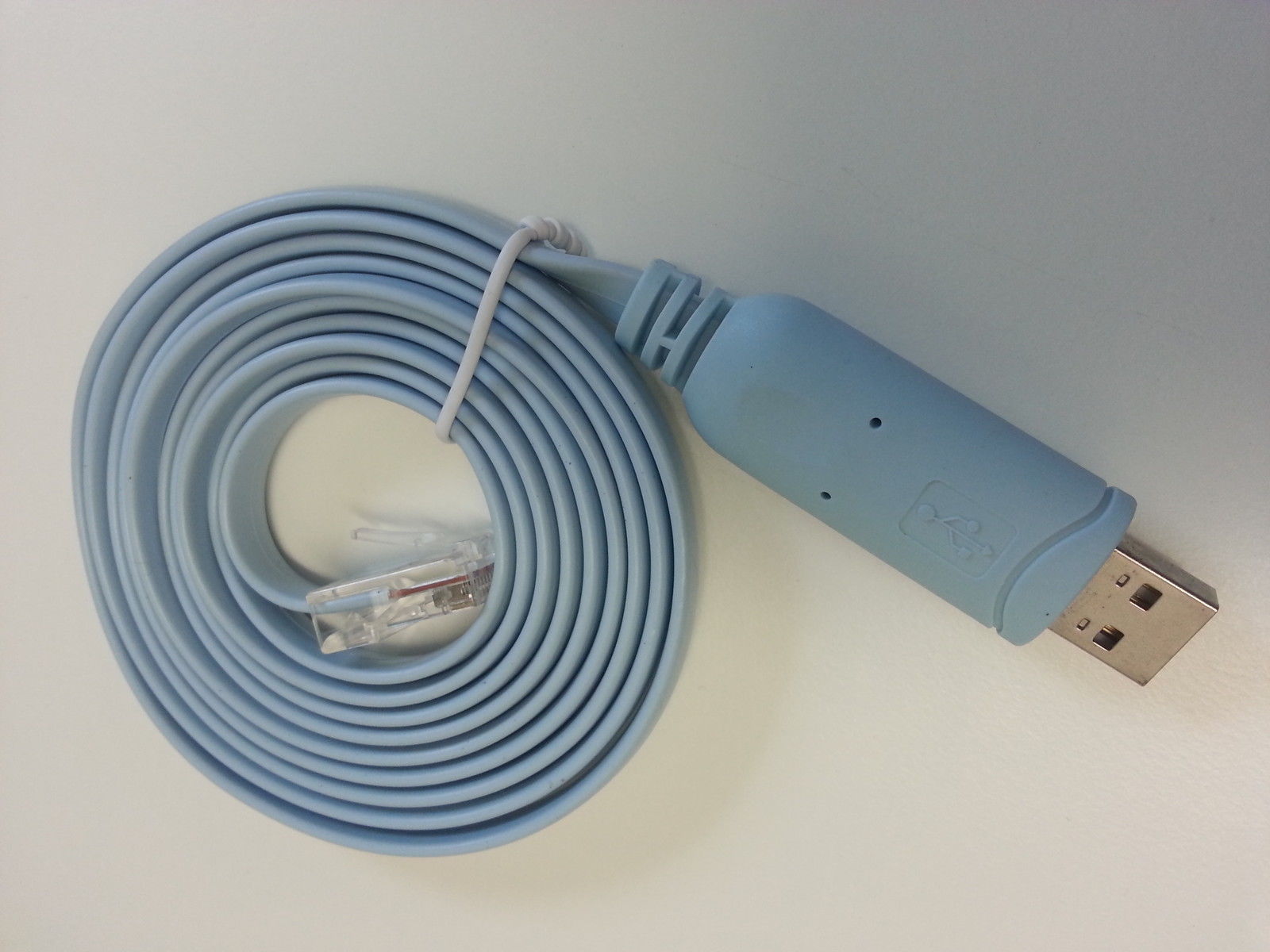

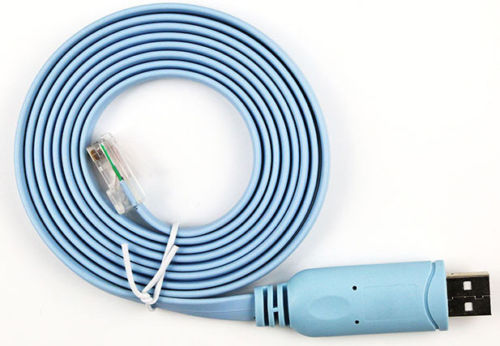

Usb Rs232 To Rj45 cable

  • Part No. :XZCUSB2049

Usb Rs232 To Rj45 cable

  1. Detailed information

Shinestrong Factory price usb otg cable rj45 male to usb male cable for network Usb Rs232 To  Rj45


USB RS232 to RJ45 USB console cable
Update the cab-console-rj45
Update the DB9 to RJ45 console cable as most PC, tablet pc, notebook, mobile phone, mobile pc without DB9
 USB2.0, USB1.1 compatible
 USB RS232 serial console cable
 USB serial COM port to RJ45 male for router setting and controlling
 FT232+ZT213 chip
 Pin assignment at USB RS232-RJ45 male cable side:
  Flat cable, 28AWG*8 core, bare copper. 3.6m
  Win 7, Win 8, Win 8.1 win 10 free driver installing
  Supports hardware flow control used to implement the CISCO break sequence
  UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd /
  USB 2.0 Full Speed 12M
  Support Android, Support Win10, 8, Win 7, XP, 2000, Linix, Mac OS, Macbook pro, Android
  Intergrated 1024 byte EEPROM, support Vendor ID re-write,support Mprog3.5
  Support FTDI VCP driver and D2XX driver
  Updating for cisco db9 RJ45 console cable
  PE bag for each.
  Net weight: 66g/pcs
  CE, RoHS compliance.

About FT232RL:
The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two new functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied.
  Single chip USB to asynchronous serial data transfer interface.
  Entire USB protocol handled on the chip - No USB-specific firmware programming required.
  UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
  Fully assisted hardware or X-On / X-Off software handshaking.
  Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud   to 1 Megabaud (RS232).
  In-built support for event characters and line break condition.
  New USB FTDIChip-ID? feature.
  New configurable CBUS I/O pins.
  Auto transmit buffer control for RS485 applications.
  Transmit and receive LED drive signals.
  New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or      FPGA.
  FIFO receive and transmit buffers for high data throughput.
  256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for   high data throughput.
  Adjustable receive buffer timeout.
  Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.
  New CBUS bit bang mode option.
  Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number    and product description strings.
  Device supplied preprogrammed with unique USB serial number.
  Support for USB suspend / resume.
  Support for bus powered, self powered, and high-power bus powered USB configurations.
  Integrated 3.3V level converter for USB I/O .
  Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
  True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
  High I/O pin output drive option.
  Integrated USB resistors.
  Integrated power-on-reset circuit.
  Fully integrated clock - no external crystal, oscillator, or resonator required.
  Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
  UART signal inversion option.
  USB bulk transfer mode.
  3.3V to 5.25V Single Supply Operation.
  Low operating and USB suspend current.
  Low USB bandwidth consumption.
  UHCI / OHCI / EHCI host controller compatible.
  USB 2.0 Full Speed compatible.
  -40°C to 85°C extended operating temperature range
