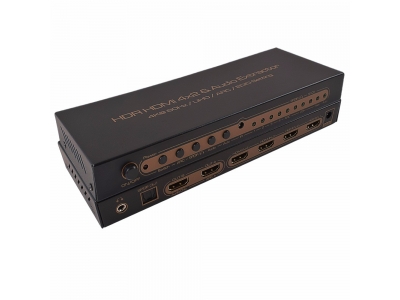

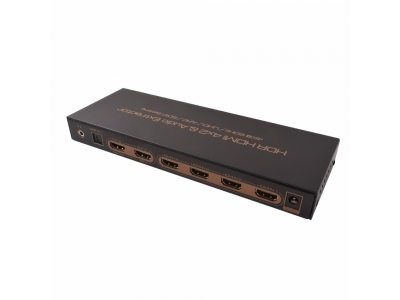

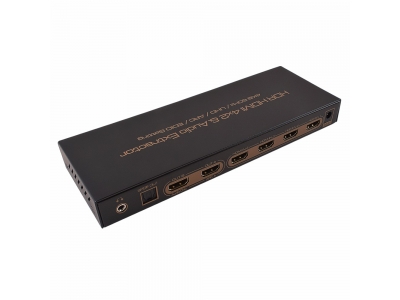

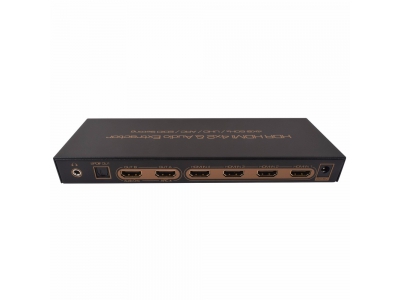

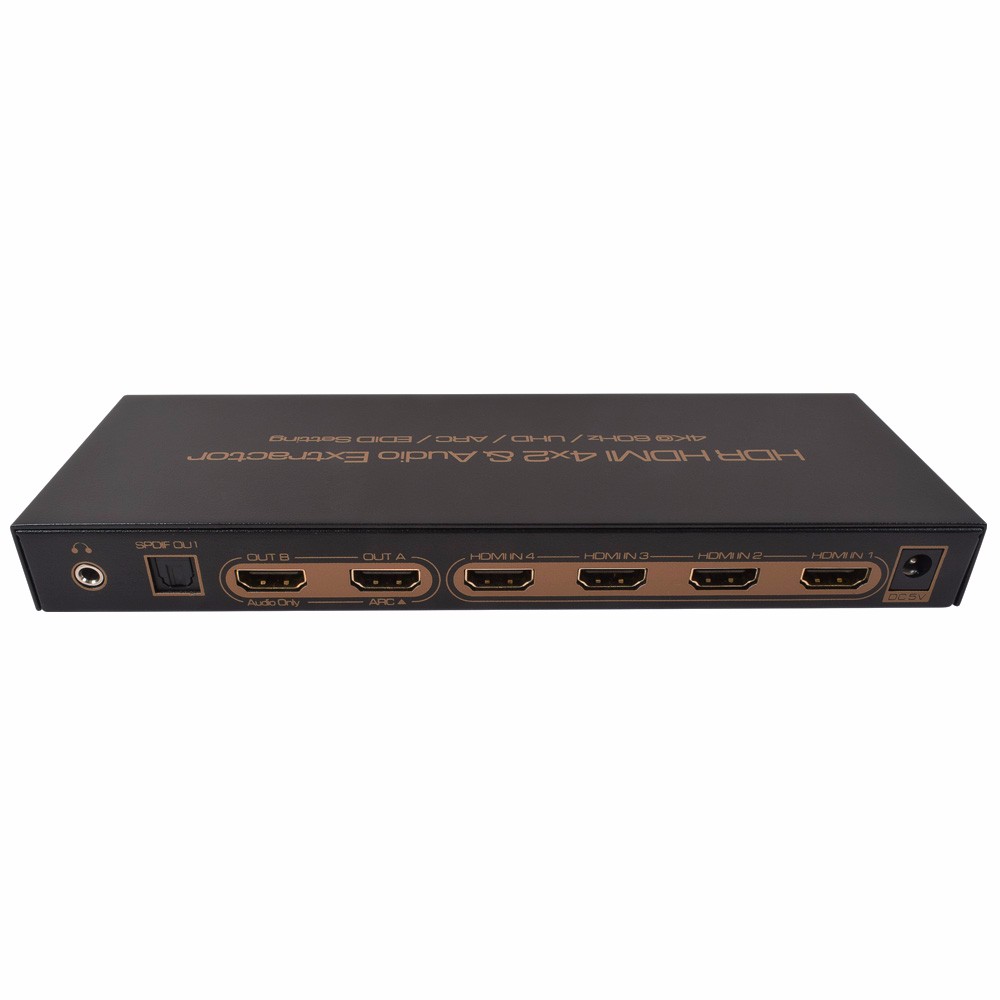

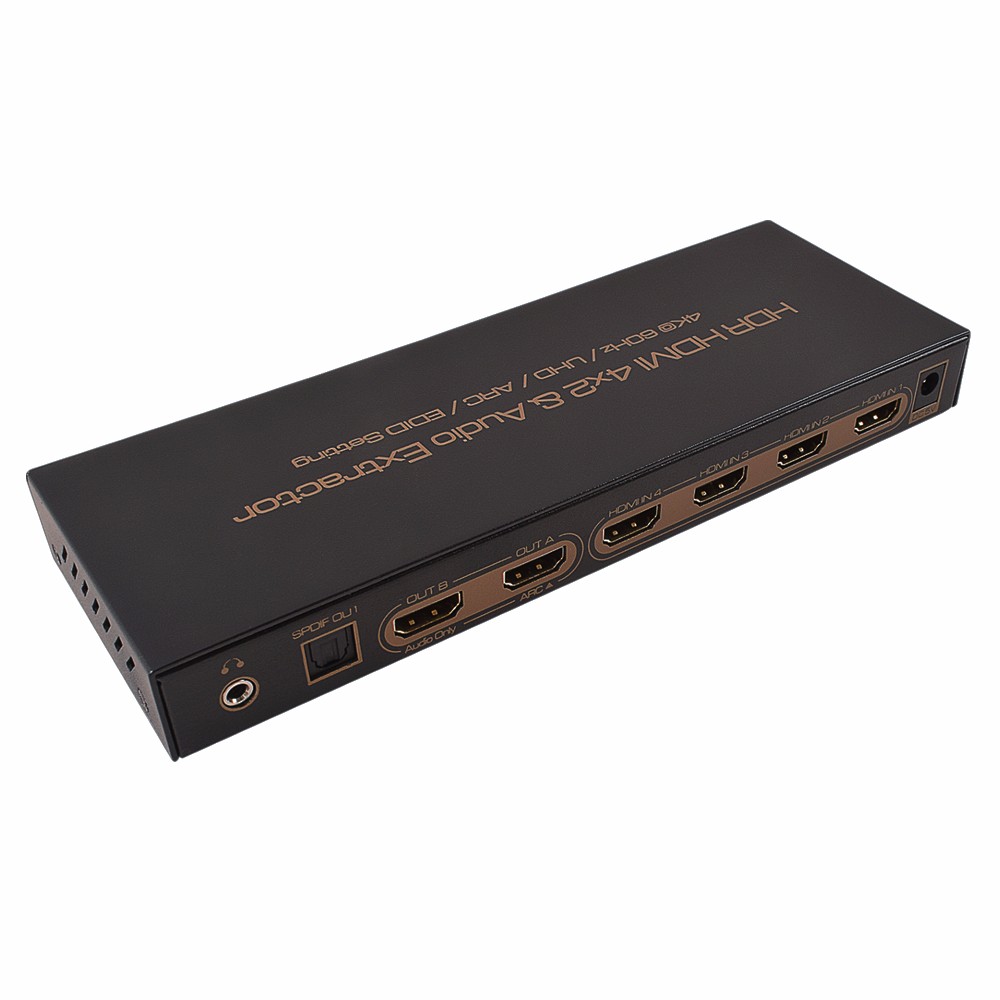

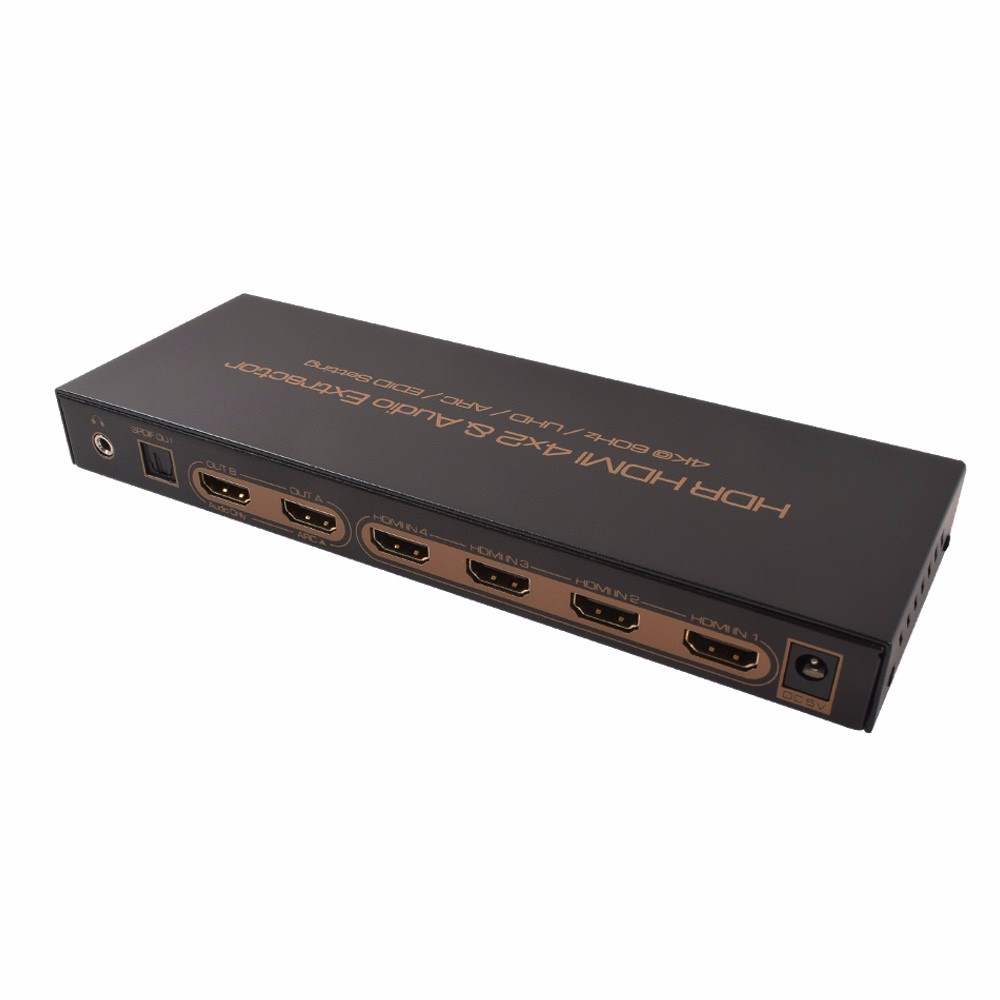

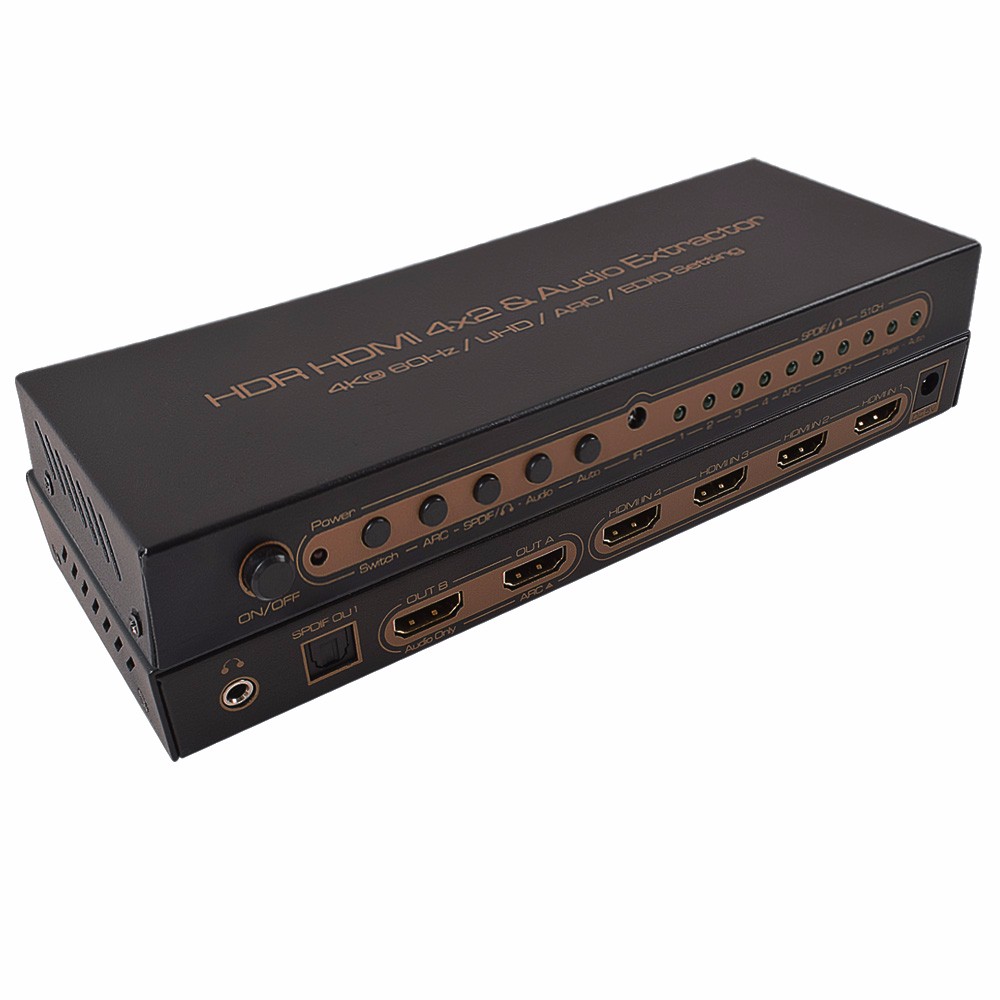

HDR HDMI 4X2 & Audio Extractor 4K@60Hz/UHD/ARC/ EDID setting

HDR HDMI 4X2 & Audio Extractor 4K@60Hz/UHD/ARC/ EDID setting

FEATURES

l  Four HDR HDMI Input signal switch to one HDR HDMI Output and one HDMI Output(Audio only)

l  Support 4K@60Hz UHD signal input and output(only output channel A) and HDR

Function

l  Any input HD Source can do audio extract by the SPDIF or L/R audio output port.

l  HDMI out port B can support Dolby-HD, DTS-HD, LPCM 7.1 high quality audio format.

l  Digital audio port of Toslink can support 192Khz Sampling Rate(LPCM2.0 Audio Format), also can support LPCM 2.0, Dolby-AC3, DTS audio output.

l  HDMI to achieve the synchronization of audio signal separation. There are 2.0、5.1、PASS three kinds of audio mode options

l  Support ARC, it can return the TV Audio to output by one Headphone port (only for the ARC audio source is LPCM 2.0) or by Toslink port. Only the OUT A port supports the ARC function.

l  LED Status Light shows clearly the working state.

l  In 4K@60Hz HDMI UHD resolution, HDMI Input and Output distance can be up to 5m using the AWG24 standard HDMI Cable. In 4K@30Hz and other lower resolution, HDMI Input and Output distance can be up to 8m using the AWG26 standard HDMI Cable.

l  Easy-Install

l  Need DC5V/1A power supply

The accessories with the machines list as picture：

 1、Main unit             1pcs

2、5V power adapter      1pcs

3、User manual          1pcs
